August 2025

Too Hot, Too Sharp, Too Loose

Reviewed by

In this Article:

Multiple lithium-ion battery failures across e-bikes, scooters, power banks, and bug zappers caused fire risks, property damage, and hazardous waste disposal requirements.
Knife blade misfires, nail gun defects, weld cracks, and burst hoses highlight preventable design and quality control lapses in manufacturing.
Recalled toys and diffuser covers underscore the need for secure component housing and long-term durability testing in consumer products.

The broad range of product recalls this month serves as a useful snapshot of where manufacturing processes and quality control can fall short. From blade exposure to electrical fire risks, many of the issues could have been caught through more comprehensive inspection or rigorous design validation.

Batteries in the spotlight

Several recalls involved lithium-ion batteries, pointing to a persistent challenge as these power sources continue to proliferate across consumer devices.

FENGQS recalled 100 e-bikes sold on Amazon due to batteries that can overheat and ignite. Consumers are being instructed to mark and photograph the battery before disposal, and to work with local hazardous waste facilities to ensure safe handling. VIVI also recalled 24,000 e-bike batteries, offering free replacements.

More troubling is a recall from Transpro, involving 700 electric scooters that were sold with unauthorized UL certification labels. In this case, overheating batteries were linked to $200,000 in reported property damage. Consumers are being offered a refund or a free replacement, but must disable and dispose of the scooter in accordance with hazardous waste regulations.

Smaller devices aren’t immune either. Tomauri's iStore power banks, with over 14,000 units across the US and Canada, were recalled due to a similar overheating risk. Even bug zappers were affected. iMirror recalled nearly 30,000 units of its electric swatters due to rechargeable batteries that can catch fire after extended use.

While none of these recalls are new in type, their frequency reflects how battery integration continues to be a complex and high-risk area for manufacturers. Thermal management, quality control of battery cells, and supplier verification remain critical.

Mechanical hazards still common

Some failures are more physical than chemical. Leatherman recalled 17,000 Charge Plus and Charge Plus TTi multi-tools due to a knife blade that doesn’t fully retract. RIDGID recalled over 70,000 framing nailers for a misfiring defect, where nails could discharge when only the trigger is pulled, bypassing the intended two-step safety feature. And in the kitchen, IKEA’s garlic press was pulled from shelves after reports of metal pieces detaching, with over 54,000 units affected across North America.

These kinds of issues typically stem from minor design decisions that don’t account for real-world usage. They’re also relatively straightforward to prevent with sufficient validation and testing, including mechanical fatigue analysis and tolerance checks.

Products for children and families

Two recalls this month centered on magnetic ingestion hazards, a category where the risks are well-known and potentially life-threatening.

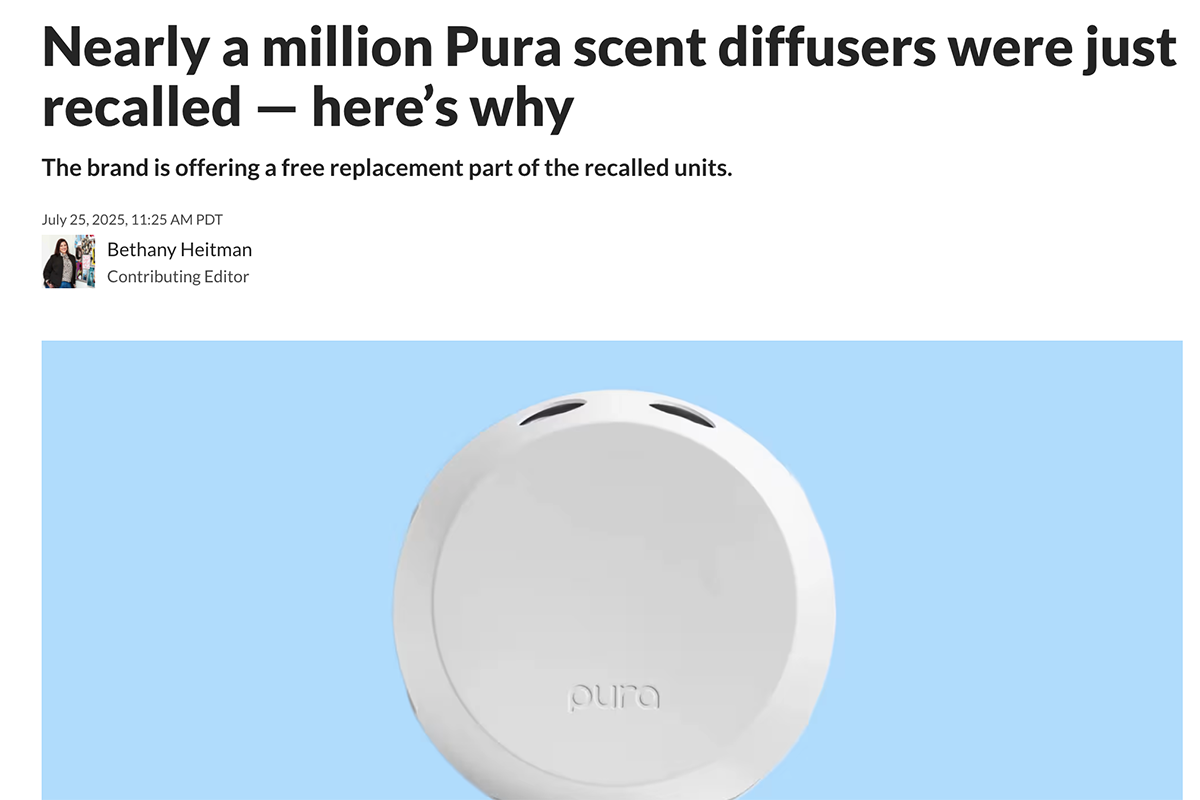

Tegu’s magnetic floating stackers were recalled because the magnets can loosen and detach. Pura Scents issued a larger recall—over 850,000 units—of smart diffuser covers for a similar risk. In both cases, the danger isn’t the size of the product, but the strength and accessibility of the internal magnets. When swallowed, they can attract across tissue and cause serious internal damage.

These incidents continue to reinforce the importance of secure component housing and long-term wear testing, especially in products that may end up in the hands of children.

Structural failures and overpressure incidents

Structural integrity also featured in this month’s list. Apollo electric scooters (790 units) were recalled due to a potential crack in the stem weld, which could lead to a fall. CasaClean steamers were pulled for leaking boiling water, while Winston Products recalled 3.6 million “burst-proof” expandable garden hoses for doing just the opposite, with a potential for bursting that creates both impact and hearing hazards.

All of these point to common stress failure modes, like poor welds, insufficient thermal management, or misaligned mechanical tolerances. These are areas where non-destructive internal inspection techniques like CT scanning can significantly reduce the chances of an issue reaching customers.

Takeaways

This month’s roundup underscores the diversity of risks that can emerge in products after shipment, and how even small design or production missteps can have large downstream consequences. Mechanical issues like misfires and leaks remain common, and battery-related failures continue to demand attention, especially as energy density increases and safety tolerances shrink.

These recalls serve as a reminder that reliability isn’t just about avoiding mistakes; it’s about building processes that surface them early, when fixes are still cheap and private. The cost of missing that window shows up later, in returns, reputation, and sometimes, real harm.
